Thermographic Survey of Air Leakage

The air tightness of the building is still falling short of the Passivhaus requirement of 0.6 Air Changes per Hour at 50 Pascals of pressure – the last test came in at around 0.9. Clearly that means there’s more air leakage than there should be but the problem has been in locating where the leakage is happening in order to fix it.

The architect, the contractor and myself all made enquiries and it became evident that the most practical approach was to do a thermographic (i.e. thermal camera) survey following the procedure defined in “BS EN 13187:1999 Thermal performance of buildings – Qualitative detection of thermal irregularities in building envelopes – Infrared method”.

The main challenge with this procedure is that it relies on a significant temperature difference between the inside and the outside of the building (at least 10 degrees and ideally more) in order to show where air leakage is either heating or cooling the surfaces. Since the air tight barrier is on the inside, the basic approach is to:

  • Heat the inside of the building to a consistent temperature of more than 20 degrees
  • Use a blower door to de-pressurise the inside of the building so that external air is drawn in through the air leaks
  • Use a thermal camera to check for cold spots caused by the outside air causing cooling around the air tight barrier

For this to work best, the outside air wants to be as cold as possible – which also means the external surfaces must not be heated by the sun. The ideal time to do the test is therefore in winter (when the outside air is cold) and before dawn (when all of the external surfaces have cooled down overnight and not yet received any sunlight). The perfect time of year is around the end of December, when dawn is relatively late and the outside temperature is generally cold.

The equipment and skills required are quite specialised and only a few consultants offer this service. I contacted Apex Acoustics (largely on the basis of them having a Midlands office in Nottingham) who provide air tightness consultancy alongside acoustic consultancy. It turned out their thermographic expert is Mark Siddall (well known in the UK Passivhaus community) who is based near the Apex Acoustics main office in Gateshead.

The survey was completed this morning and showed a significant leak in a store room above the balcony and a few minor leaks elsewhere. I’ll update this post with some of the thermal camera photos when I get them from Mark.

The plan is now to fix the leak above the balcony and to check what that does to the overall air tightness figure, with the hope that it will be enough to enable Passivhaus certification.

Blower door doing its thing during Thermographic Survey

Week 76, Day 5

Week 76, Day 5:

  • Another air pressure test following the work on the window and door seals on Tuesday.
    • The build team were hoping the replacement of the sliding door seals in particular would make a big difference (despite having taped over those seals during some previous tests wth minimal impact) but I wasn’t expecting a huge improvement.
    • The test came in at 0.9 ACH @ 50 Pa whereas Passivhaus Certification demands 0.6 or lower, so still more work to do.
  • Good progress on the 50m-long swale that will take the rainwater from the house roof and attempt to disperse it before allowing any excess to drain to the field ditch through a controlled outflow
  • More minor internal snagging items completed, including re-instating the end caps on the lower flight of stair treads
Week 76, Day 5

Week 76, Day 5

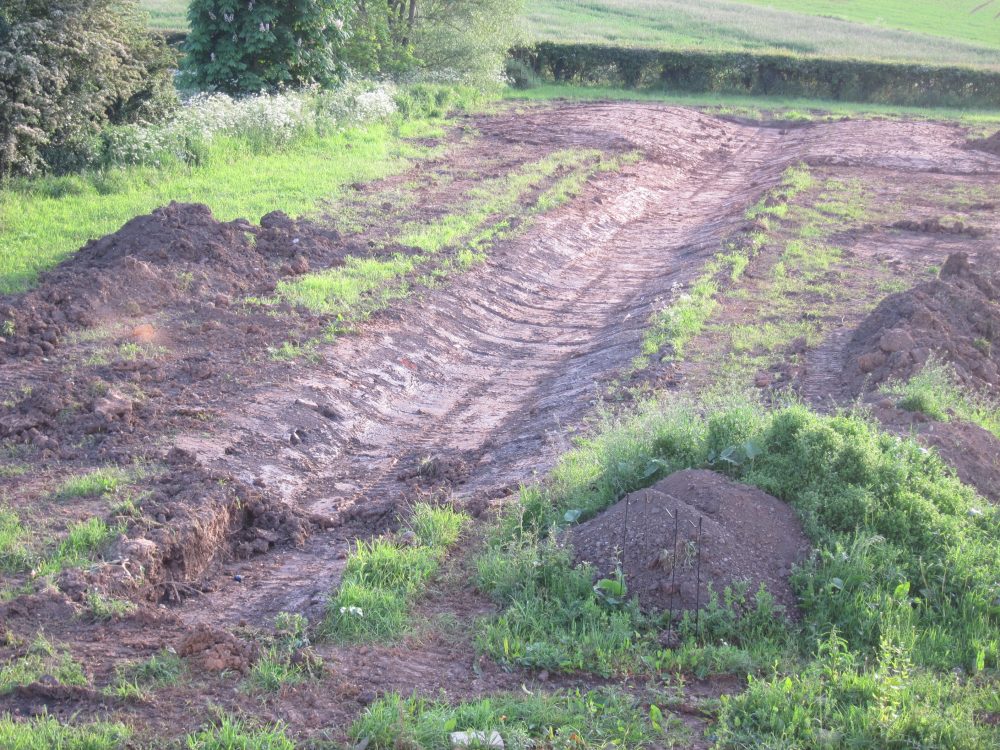

Partially completed swale to the west of the house
