Outbuildings: Week 36, Day 2

Outbuildings: Week 36, Day 2

The garage door installation team were back on site to finish up the last few bits and pieces, which only took a couple of hours. The Hormann RollMatic 2 shutters have quite a sophisticated motor control system, with a ‘soft stop’ at the bottom of their run and they lift faster than they lower (when they need to be checking for an increase in motor load that might indicate an obstruction). The four-button remote controls have been configured to operate all of the doors from each remote control.

The electrical installation team were also back on site, completing all the outdoor lighting, the last of the indoor lighting, the special sockets for the rainwater harvesting system and some of the work on the two myenergi Zappi electric car chargers. A few more hours tomorrow should see the electrical installation completed – apart from the electric shower, which needs to wait until the wall has been tiled (which needs to wait for the floor covering to go down).

Completed Garage Doors with their External Lighting

One other bit of progress was a trial fitting of the steel handrail for the external staircase, before that gets fully welded and galvanised. It just needs a couple of adjustments to the fixing brackets – and the ‘return’ section of the rail for the landing needs fabricating.

Trial fitting of the steel handrail for the External Staircase

Outbuildings: Week 34, Day 2

Outbuildings: Week 34, Day 3

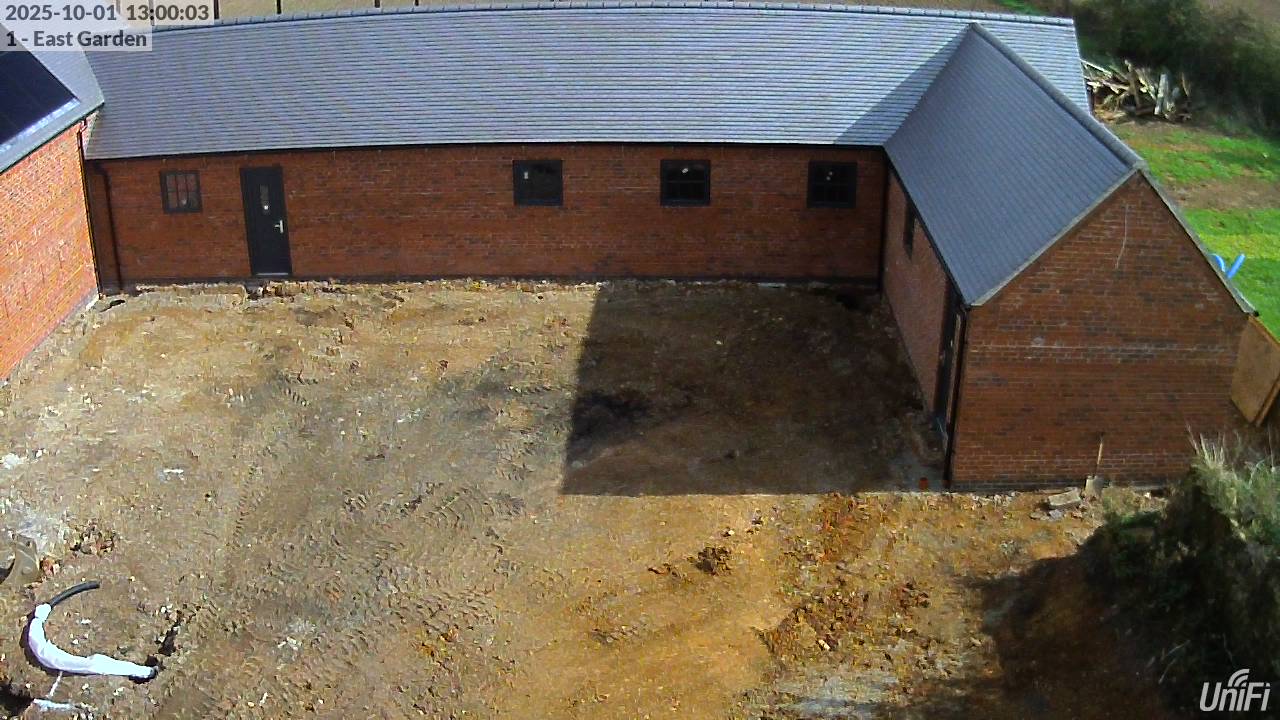

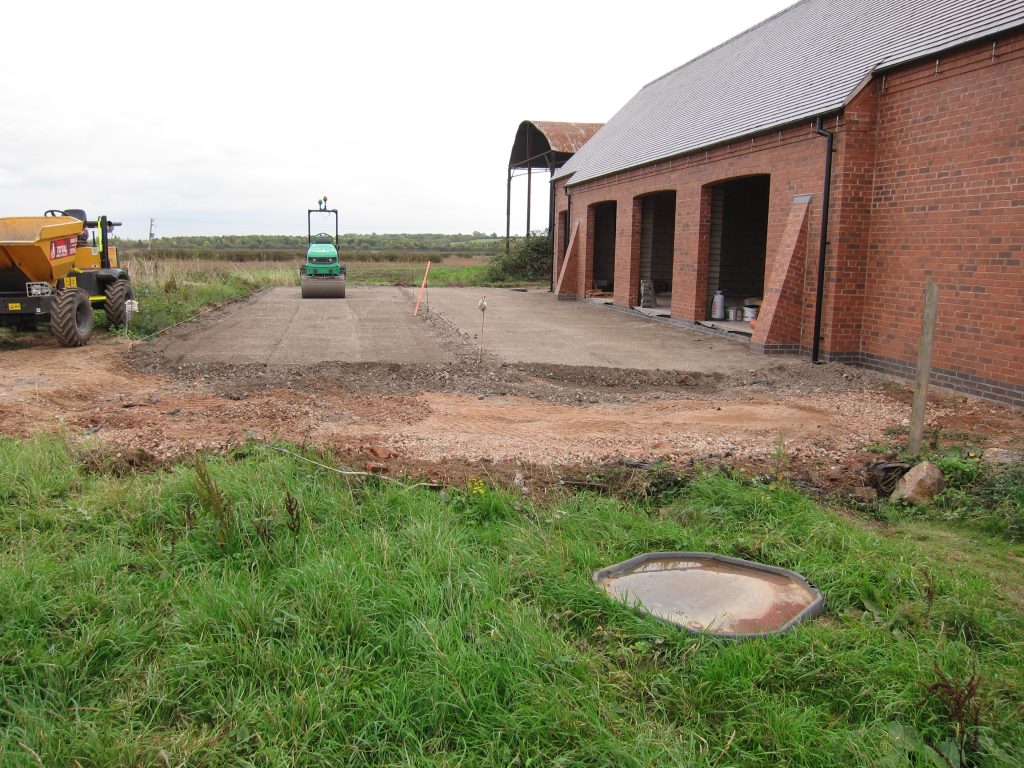

Still awaiting the delivery of the rainwater flow control components (now promised for tomorrow) so work switched back to the Courtyard where the sticky clay soil has been getting tracked into the buildings and there were soft spots where drain trenches had only been loosely back-filled. The soft spots were compacted with the digger tracks and some walkways were formed using reclaimed / crushed aggregate on top of landscape fabric. These walkways form part of the ‘grid’ pattern of paths and planting beds envisaged for this area long-term, but for now they’re just the subset required to create mud-free access between the House and the four doorways into the Outbuildings.

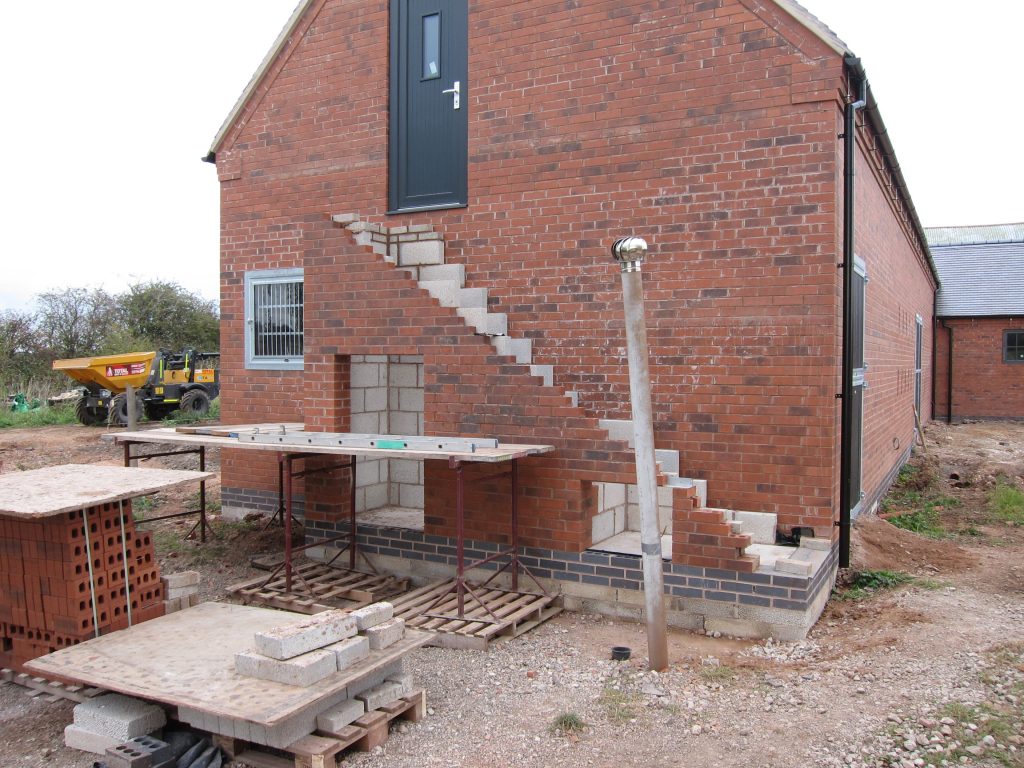

Another important bit of progress was a site meeting with the company who will fabricate the handrail for the external staircase. There’s an ‘indicative’ drawing for this from the Architect but the as-built dimensions needed confirming, together with some discussion about how the steel structure will be fixed to the masonry. This will be a very prominent feature of the site, directly in front of everyone arriving at the front door to the House, so it needs to look good. The plan is to leave it with a ‘raw’ galvanised finish, which will match the heavy galvanised frame of the adjacent stable window – as well as echoing some features of the House (notably the zinc roof covering). While new galvanising always looks very shiny it will weather to match the existing zinc over the course of a few years.
